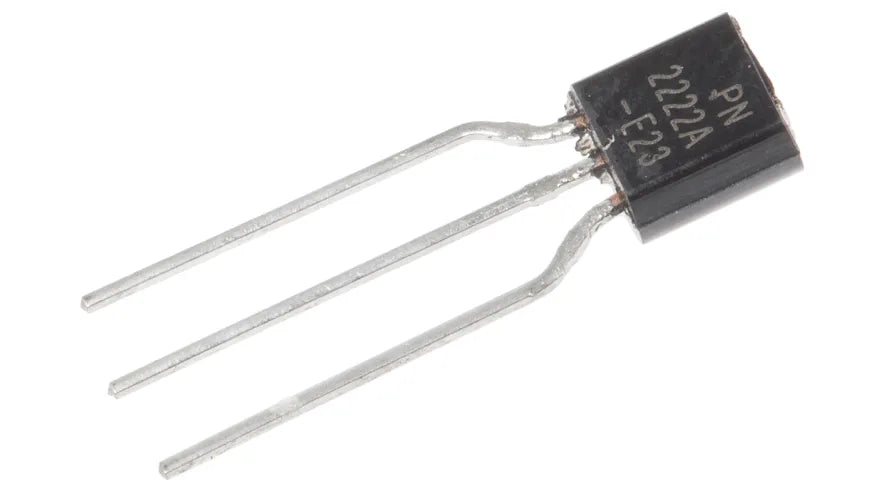

onsemi PN2222ATA General Purpose NPN Transistor, TO-92, 1A 40V

onsemi PN2222ATA NPN Transistor – 1 A, 40 V, TO-92 Package

The onsemi PN2222ATA is a single NPN bipolar junction transistor designed for through-hole mounting in a compact TO-92 package. It supports high current handling and fast switching performance, making it suitable for a wide range of general-purpose transistor applications.

With a maximum DC collector current of 1 A and a collector-emitter voltage rating of 40 V, this transistor delivers reliable electrical performance in compact circuit designs. Its high maximum operating frequency of 300 MHz supports fast signal switching, while robust voltage and temperature ratings ensure dependable operation under demanding conditions.

Key Features

• NPN transistor configuration

• High DC collector current capability up to 1 A

• 40 V maximum collector-emitter voltage

• Fast switching with 300 MHz maximum operating frequency

• Compact TO-92 through-hole package

• Single transistor element per chip

Technical Specifications
